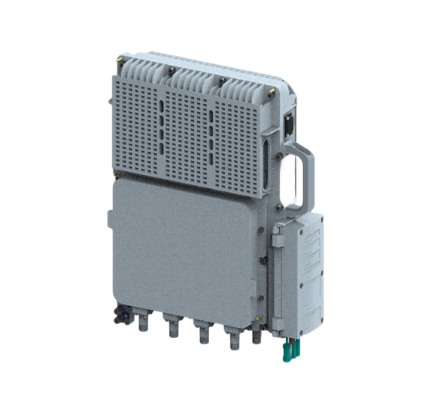

BS6212 T1800

Baseband unit and RF unit functions are built-in BS6212 T1800, which is based on the advanced SoC Base Station solution and carrier-grade hardware and software platform. BS6212 T1800 supports TD-LTE 1.8GHz frequency band and has two RF channels (2T2R). The Max. RF power per channel is 40W to meet the requirement of customized long-distance LTE signal coverage for industry customers' private networks.

All-in-one design and high integration

Based on the advanced all-in-one SoC Base Station solution, baseband unit and RF unit functions are built-in BS6212 T1800. The total Max. RF power is 2*40W to cover further distances. BS6212 T1800 has the characteristics of small size, high integration, high performance. On the carrier-grade software and hardware architecture BS6212 T1800 can run with 7*24 hours continuously, which conforms to the requirement of carrier-grade reliability.

High data throughput

BS6212 T1800 supports 2T2R MIMO smart antenna technology and flexible LTE carrier bandwidth defined by 3GPP organization, such as 5MHz, 10MHz, 15MHz and 20MHz. The Max. data throughput can reach more 100Mbps.

Energy saving and high environmental adaptability

BS6212 T1800 supports high efficiency natural cooling technology for green energy saving and can run with no noise. BS6212 T1800 supports flat, vertical, wall-mounted and other installation methods. It is easy to be installed and dismounted. The Ingress Protection level of BS6212 T1800 is IP65 and the operating temperature range is from -40℃ to +55℃, which makes BS6212 T1800 can work in all kinds of outdoor application environments.
