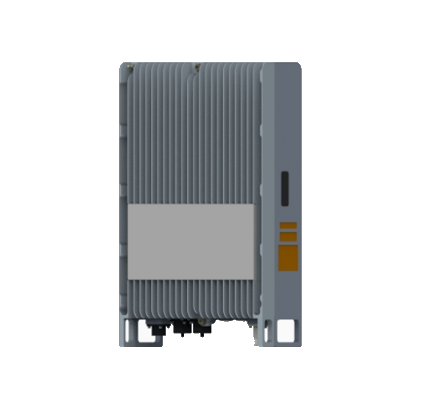

BS6212 F1800

Baseband unit and RF unit functions are built-in BS6212, which is based on the advanced SoC Base Station solution and carrier-grade hardware and software platform. BS6212 supports FDD LTE B1/B3/B5/B7/B8/B28 band and has two RF channels (2T2R). The Max. RF power per channel is 40W to meet the requirement of customized long-distance LTE signal coverage for telecom operators’ edge networks.

All-in-one design and high integration

Based on the advanced all-in-one SoC Base Station solution, baseband unit and RF unit functions are built-in BS6212. The total Max. RF power is 2*40W to cover further distances. BS6212 has the characteristics of small size, high integration, high performance. On the carrier-grade software and hardware architecture BS6212 can run with 7*24 hours continuously, which conforms to the requirement of carrier-grade reliability.

High data throughput

BS6212 supports 2T2R MIMO smart antenna technology and flexible LTE carrier bandwidth defined by 3GPP organization, such as 5MHz, 10MHz, 15MHz and 20MHz. BS6212 F2100/ F1800//F8500/F2600 works on B1/B3/B5/B7 band and 5MHz/10MHz/15MHz/20MHz carrier bandwidth. BS6212 F9000/F7000 works on B8/B28 band and 5MHz/10MHz carrier bandwidth. The Max. downlink data throughput can reach 200Mbps and the Max. uplink data throughput can reach 75Mbps.

Energy saving and high environmental adaptability

BS6212 supports high efficiency natural cooling technology for green energy saving and can run with no noise. BS6212 supports flat, vertical, wall-mounted and other installation methods. It is easy to be installed and dismounted. The Ingress Protection level of BS6212 is IP65 and the operating temperature range is from -40℃ to +55℃, which makes BS6212 can work in all kinds of outdoor application environments.
